1700TR Pull-Type Feed Mixers, Pull Type Feed Mixers | Douglas Lake Equipment & Avenue Machinery
Call Sales
HQ

1700TR Pull-Type

Starting at:

Call for Pricing

Get More InformationStart WhatsApp ChatEvaluate my trade
1700TR Pull-Type
1700TR Pull-Type 0
1700TR Pull-Type 1

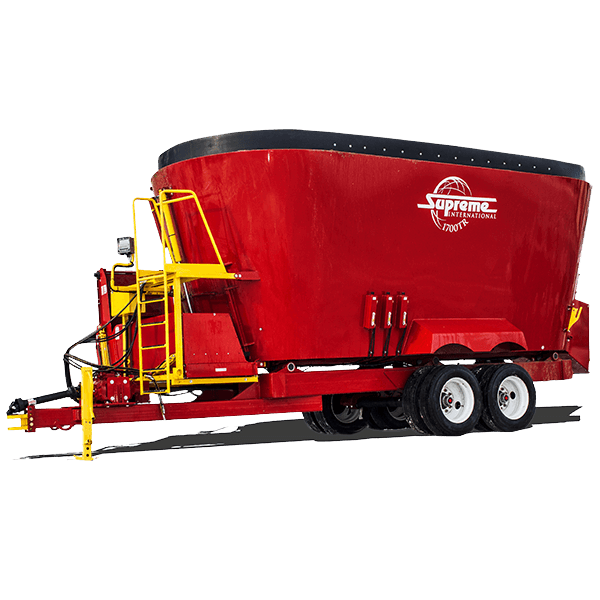

The 1700TR Pull-Type has a maximum payload of 50,000 lbs (22,680 kg), struck capacity of 1,392 ft³ (39.4 m³) or 1,566 ft³ (44.3 m³) with tub extension, and requires 200 horse power (149 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or counter-shafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 1700TR is also available as a stationary.

Technical Details

Minimum Power Requirements: 200 hp / 149 kW

Unit Capacity: Struck Capacity: 1,392 ft³ / 39.4 m³, Capacity with Extension: 1,566 ft³ / 44.3 m³

Tires: 275/70R 22.5 Truck Tires

Empty Weight: 33,837 lbs / 15,348 kg

Max Payload: 50,000 lbs / 22,680 kg

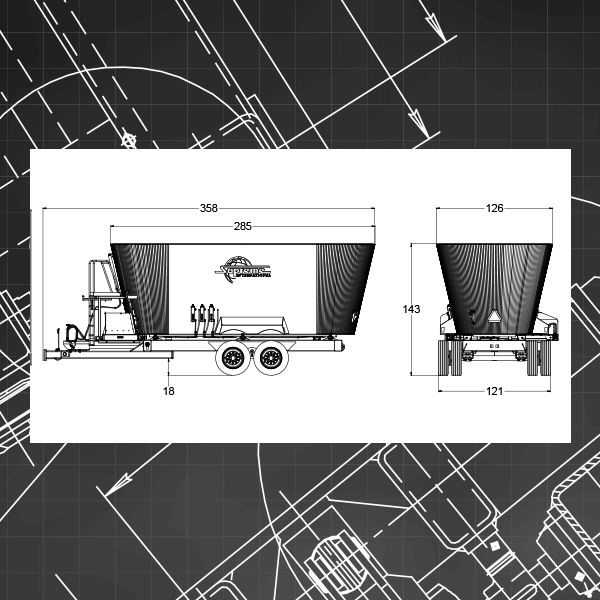

Dimensions: Height: 143″ / 363 cm, Height w/ 10″ Extension: 153″ / 389 cm, Overall Width: 126″ / 320 cm, Overall Length : 358″ / 909 cm

Drive / rpm PTO: (3) 2 Stage HD Planetary Drives / 1000 rpm PTO

Standard Discharge Ground Clearance: Flat: 38″ / 97 cm, Dogleg: 52″ / 132 cm, Ext. Dogleg: 63″ / 160 cm, 42″ Folding: 61″ / 155 cm, 54″ Folding: 68″ / 173 cm, Side Door Fixed Chute: 29″ / 74 cm

Number of Knives : (15) Replaceable Forage Cutting Blades

Conveyor: Front Center Door with 10’ Flat Conveyor

Floor Thickness: 1” / 25 mm M/S Floor

Wall Thickness: 5/16” / 8 mm AR200 Walls

Standards Specifications: Three Patented Freestanding Vertical Cutting Augers, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 6 pt Scale System, Articulating Hitch, Stainless Steel Auger Outer Edge, Independent Steel Oil Reservoirs, Viewing Platform
