300 Pull-Type
300 Pull-Type 0
300 Pull-Type 1

The 300 Pull-Type has a maximum payload of 6,000 lbs (2,722 kg), struck capacity of 231 ft³ (6.5 m³) or 275 ft³ (7.8 m³) with tub extension, and requires 50 horse power (37 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 300 is also available as a stationary mixer.

Technical Details

Minimum Power Requirements: 50 hp / 37 kW

Unit Capacity: Struck Capacity: 231 ft³ / 6.5 m³
Capacity with Extension: 275 ft³ / 7.8 m³

Tires: 12.5L-15, 12 Ply Rated Hwy

Empty Weight: 5,700 lbs / 2,585 kg

Max Payload: 6,000 lbs / 2,722 kg

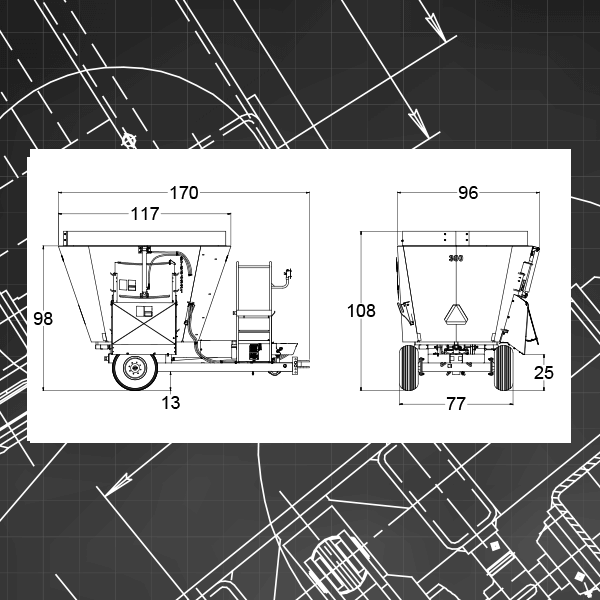

Dimensions: Height: 98″ / 249 cm
Height w/ 10″ Extension: 108″ / 274 cm
Overall Width: 96″ / 244 cm
Overall Length : 170″ / 432 cm

Drive / rpm PTO: 2-Stage Heavy-Duty Planetary Drive / 540 rpm PTO

Standard Discharge Ground Clearance: Fixed Chute: 25″ / 64 cm
21″ Fixed: 34″ / 86 cm
36″ Folding: 41″ / 104 cm
44″ Folding: 44″ / 112 cm

Number of Knives : 4 Replaceable Forage Cutting Blades

Conveyor: Left or Right Hand Side Door with Drop Chute

Floor Thickness: 5/8″ / 16 mm M/S Floor

Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications:

  • Patented Freestanding Vertical Mixing Auger
  • Manual Restrictor Plates
  • Heavy-Duty Tubular Steel Frame
  • 5/8” / 16 mm AR200 Auger Flighting
  • Left or Right hand side door with Drop chute
  • 3 pt Scale System
  • 12 Volt Battery
  • Ultra Wear Kickerplate
  • SS Conveyor Top Pan on Conveyor Models
  • Steel Oil Reservoir
  • Removable Hitch Jack
  • Viewing Platform
