500 Pull-Type

Starting at:

Call for Pricing

Get More InformationStart WhatsApp ChatEvaluate my trade
500 Pull-Type
500 Pull-Type 0
500 Pull-Type 1
500 Pull-Type 2

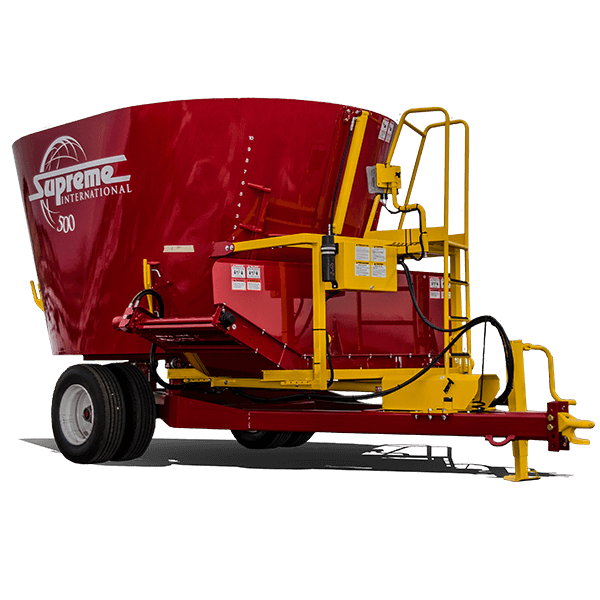

The 500 Pull-Type has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 394 ft³ (11.2 m³) or 459 ft³ (13.0 m³) with tub extension, and requires 100 horse power (75 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 500 is also available as a stationary mixer.

Technical Details

Minimum Power Requirements: 100 hp / 75 kW

Unit Capacity: Struck Capacity: 394 ft³ / 11.2 m³
Capacity with Extension: 459 ft³ / 13.0 m³

Tires: 235 x 75 x 17.5 Tires

Empty Weight: 9,000 lbs / 4,082 kg

Max Payload: 14,000 lbs / 6,350 kg

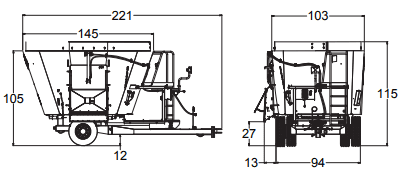

Dimensions: Height: 105″ / 267 cm
Height w/ 10″ Extension: 115″ / 292 cm
Overall Width: 103″ / 262 cm
Overall Length : 221″ / 561 cm

Drive / rpm PTO: 2-Stage Heavy-Duty Planetary Drive / 540 or 1,000 rpm PTO

Standard Discharge Ground Clearance: SIDE DOOR:
Fixed Chute: 27″ / 69 cm
21″ Fixed: 36″ / 91 cm
36″ Folding; 42″ / 107 cm
44″ Folding: 46″ / 117 cm
96″ Folding: 68″ / 173 cm
FRONT DOOR w/ CONVEYOR:
Flat: 27″ / 69 cm
Dogleg: 40″ / 102 cm
Ext. Dogleg: 51″ / 130 cm
42″ Folding: 44″ / 112 cm
54″ Folding: 49″ / 124 cm

Number of Knives : 5 Replaceable Forage Cutting Blades

Conveyor: Left or Right Hand Side Door with Drop Chute

Floor Thickness: 5/8″ / 16 mm M/S Floor

Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications:

  • Patented Freestanding Vertical Mixing Auger
  • Manual Restrictor Plates
  • Heavy-Duty Tubular Steel Frame
  • 5/8” / 16 mm AR200 Auger Flighting
  • 3 pt Scale System
  • 12 Volt Battery
  • Ultra Wear Kickerplate
  • SS Conveyor Top Pan on Conveyor Models
  • Steel Oil Reservoir
  • Removable Heavy-Duty Hitch Jack
  • Viewing Platform
