700TSM Mechanical Stationary

Starting at:

Call for Pricing

Get More InformationStart WhatsApp ChatEvaluate my trade
700TSM Mechanical Stationary
700TSM Mechanical Stationary 0
700TSM Mechanical Stationary 1

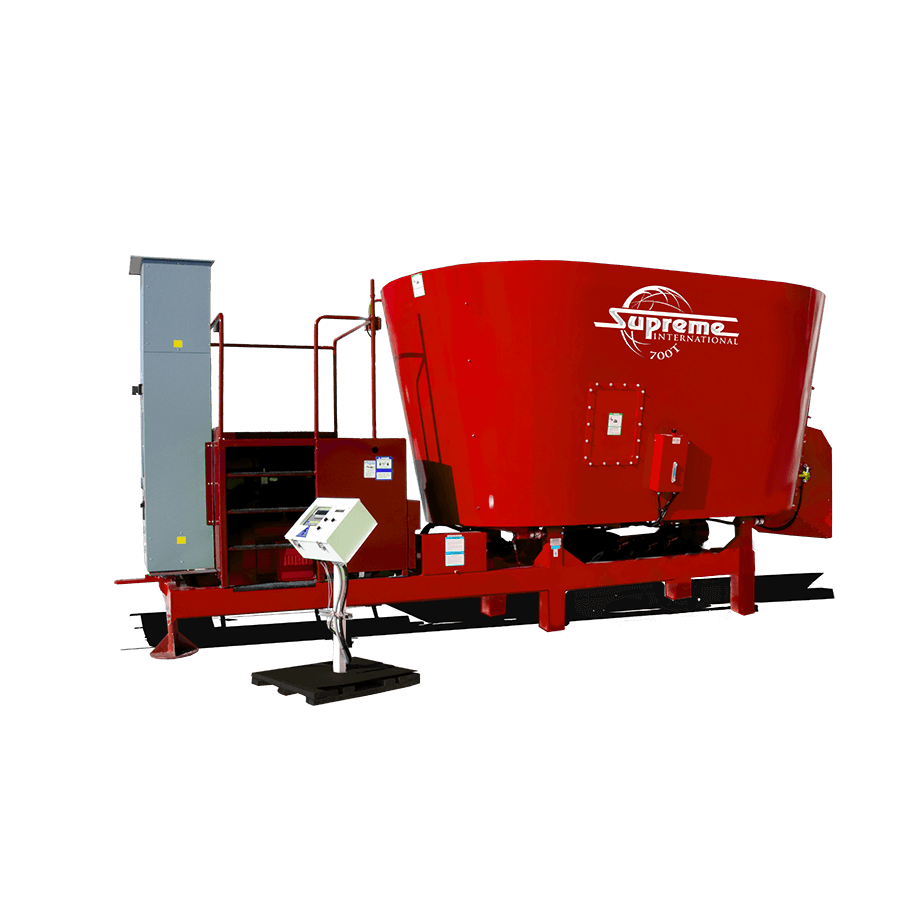

The 700T Mechanical Stationary has a maximum payload of 14,000 lbs (6,350 kg), struck capacity of 565 ft³ (16.0 m³) or 649 ft³ (18.4 m³) with tub extension, and requires 100 horsepower (75 kW).

An energy efficient way to mix your feed – mechanical drive can be powered by electric or diesel power. Like our Pull-Type models, our Mechanical Stationaries have robust heavy-duty planetary drives. All stationary models are equipped with end door and fixed chute for easy unloading of mixed wet or dry commodities. Various pedestal heights are available to fit each operation’s requirements.

The 700T is also available as a pull type and as a truck mount.

Technical Details

Minimum Power Requirements: 100 hp / 75 kW

Unit Capacity: Struck Capacity: 565 ft³ / 16.0 m³
Capacity with Extension: 649 ft³ / 18.4 m³

Tires: N/A

Empty Weight: 12,665 lbs / 5,745 kg

Max Payload: 14,000 lbs / 6,350 kg

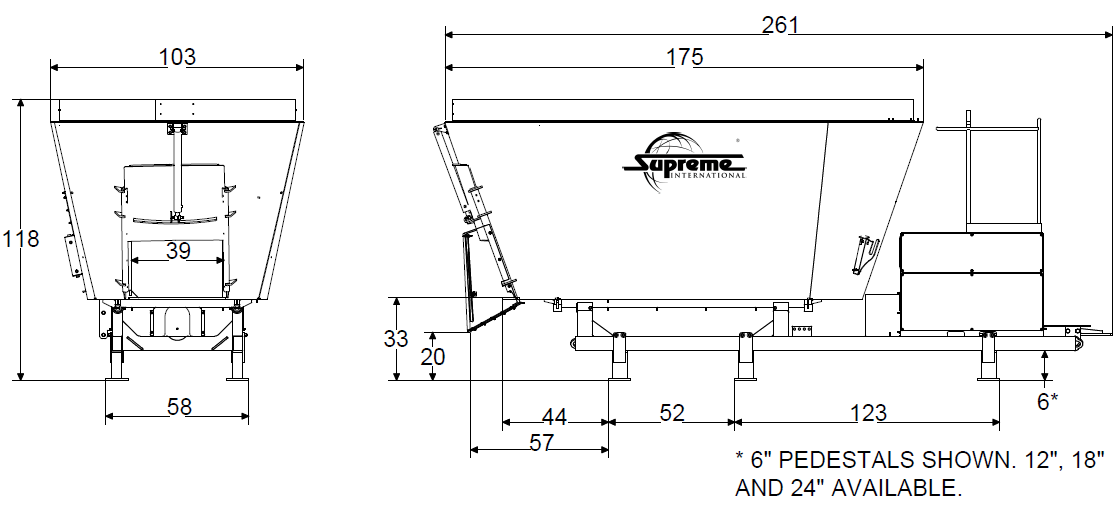

Dimensions: Height w/ 6” Pedestals: 108” / 274 cm
Height w/ 10” Extension: 118” / 300 cm
Overall Width: 103” / 262 cm
Overall Length: 261” / 663 cm

Drive / rpm PTO: Heavy Duty Planetary Drives

Standard Discharge Ground Clearance: Fixed Chute w/ 6” pedestals: 15” / 38 cm

Number of Knives : 10 Replaceable Forage Cutting Blades

Conveyor: Rear Discharge Door

Floor Thickness: 3/4” / 19 mm M/S Floor

Wall Thickness: 1/4” / 6 mm AR200 Walls

Standards Specifications:

  • 2 Patented Freestanding Vertical Cutting Auger
  • Manual Restrictor Plates
  • Ultra Wear Kicker Plates
  • Viewing Platform
  • 4-point Scale System
  • Tub Mounted Weight Repeater
  • 5/8” / 16 mm AR200 Auger Flighting
  • Independent Steel Oil Tanks
