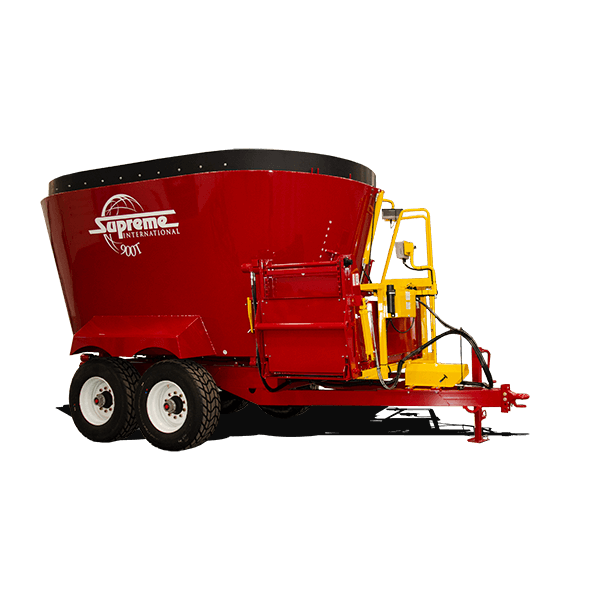

The 900T Pull-Type Tandem Axle has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 731 ft³ (20.7 m³) or 841 ft³ (23.8 m³) with tub extension, and requires 130 horse power (97 kW).

Unlike most other vertical mixers that use smaller single stage planetary drives, Supreme uses the heaviest two-stage planetary drive available. Combined with a heavy duty gearbox, this robust system rotates the auger through the toughest of materials. This simple design features few moving parts with no chains, sprockets or countershafts to worry about. Each Supreme pull type is built to order with a large variety of options available, ensuring each customer gets a unit that is designed to meet their specific needs.

The 900T is also available as a truck mount and a stationary mixer.

Technical Details

Minimum Power Requirements: 130hp / 97kW

Unit Capacity: Struck Capacity: 731 ft³ / 20.7 m³, Capacity with Extension: 841 ft³ / 23.8 m³

Tires: 275/70R 22.5 Truck Tires with Budd Wheels and HD Axle

Empty Weight: 18,524 lbs / 8,402 kg

Max Payload: 24,000 lbs / 10,886 kg

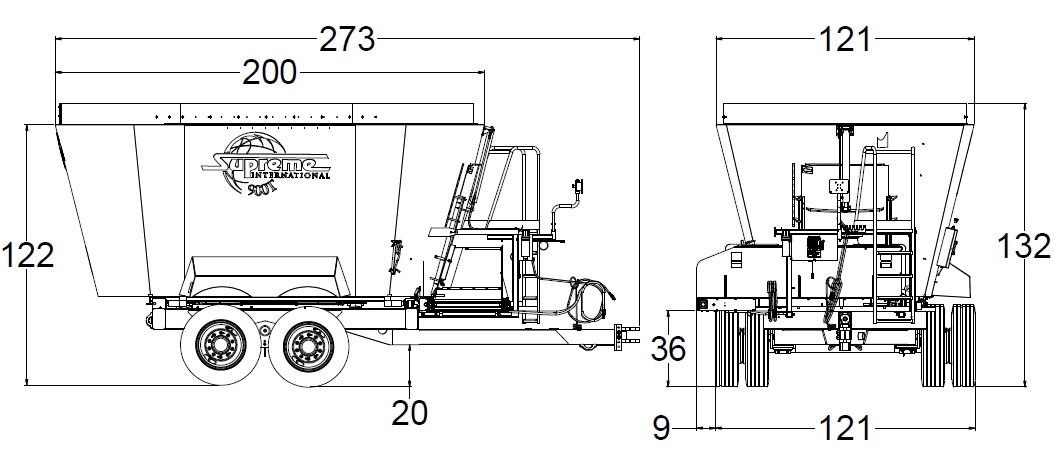

Dimensions: Height: 122″ / 310 cm, Height w/ 10″ Extension: 132″ / 335 cm, Overall Width: 121″ / 307 cm, Overall Length : 273″ / 693 cm

Drive / rpm PTO: Two Heavy-Duty, Two-Stage Planetary Drives / 540 or 1000 rpm PTO

Standard Discharge Ground Clearance: Flat: 36″ / 91 cm, Dogleg; 49″ / 124 cm, Ext. Dogleg: 60″ / 152 cm, 42″ Folding: 58″ / 147 cm, 54″ Folding: 65″ / 165 cm

Number of Knives : 10 Replaceable Forage Cutting Blades

Conveyor: Front Center Door With 10’ Flat Conveyor

Floor Thickness: 3/4” (19 mm) M/S Floor

Wall Thickness: 1/4” (6 mm) AR200 Walls

Standards Specifications: Tandem Axle, Two Patented Freestanding Vertical Mixing Augers, Manual Restrictor Plates, Heavy-Duty Tubular Steel Frame, 5/8” / 16 mm AR200 Auger Flighting, Ultra Wear Kicker Plates, Removable Heavy Duty Hitch Jack, 4pt Scale System, 12 Volt Battery, SS Conveyor Top Pan, Independent Steel Oil Reservoirs, Viewing Platform
